UF4001 - 1.0A ULTRAFAST DIODE

Product Overview

WON-TOP

Part number	UF4001
Manufacturer	WON-TOP
File Size	39.83 KB
Description	1.0A ULTRAFAST DIODE
Datasheet	UF4001 Datasheet
Note	This datasheet PDF includes multiple part numbers: UF4001, UF4001-WON. Please refer to the document for exact specifications by model.

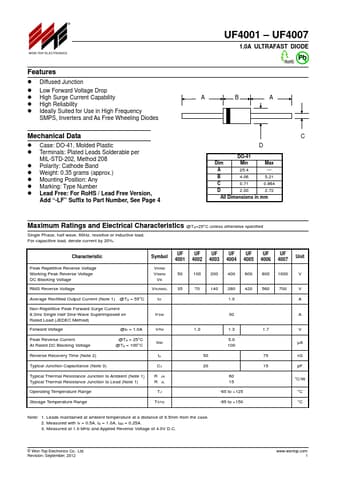

Additional preview pages of the UF4001 datasheet.

Diffused Junction.
Low Forward Voltage Drop.
High Surge Current Capability.
High Reliability.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes Mechanical Data.
Case: DO-41, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Weight: 0.35 grams (approx. ).
Mounting Position: Any.
Marking: Type Number.
Lead Free: For RoHS / Lead Free Version, Add “-LF”.
