UF4005

1.0A ULTRAFAST DIODE

UF4005 Features

* Diffused Junction

* Low Forward Voltage Drop

* High Surge Current Capability

* High Reliability

* Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes Mechanical Data

* Case: DO-41, Molded Plastic

* Terminals: Plated Leads Solderable per

UF4005 Datasheet (39.83 KB)

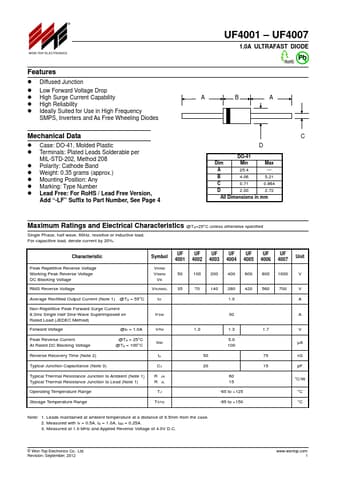

Preview of UF4005 PDF

Datasheet Details

Part number:

UF4005

Manufacturer:

WON-TOP

File Size:

39.83 KB

Description:

1.0a ultrafast diode.
