ML2340

Single Supply / Programmable 8-Bit D/A Converters

ML2340 Features

* s Programmable output voltage gain settings of 2, 1, 1 /2, 1/4 provide 8-, 9-, 10-, or 11-bit effective resolution around zero AGND to VCC output voltage swing Bipolar or unipolar output voltage 4.5V to 13.2V single supply or ±2.25V to ±6.5V dual-supply operation Transparent latch allows microproce

ML2340 General Description

The ML2340 and ML2350 are CMOS voltage output, 8-bit D/A converters with an internal voltage reference and a µP interface. These devices are designed to be powered by a single supply, although they can be powered from dual power supplies. The output voltage swings above zero scale (VZS) in the unipo.

ML2340 Datasheet (220.87 KB)

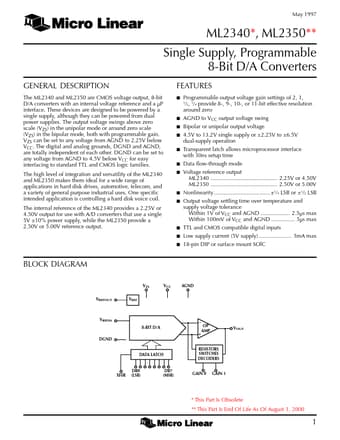

Preview of ML2340 PDF

Datasheet Details

Part number:

ML2340

Manufacturer:

Micro Linear

File Size:

220.87 KB

Description:

Single supply / programmable 8-bit d/a converters.
