ML2302 Recording and Playback LSI

📥 Download Datasheet  Datasheet Preview Page 1

Description

OKI Semiconductor ML2302 Recording and Playback LSI with Built-in 2-Bit ADPCM2 Supported FIFO FEDL2302DIGEST-05 Issue Date: Dec.27, 2004 GENERAL DE.
The ML2302 is a recording and playback LSI with built-in FIFO memories for buffering.

📥 Download Datasheet

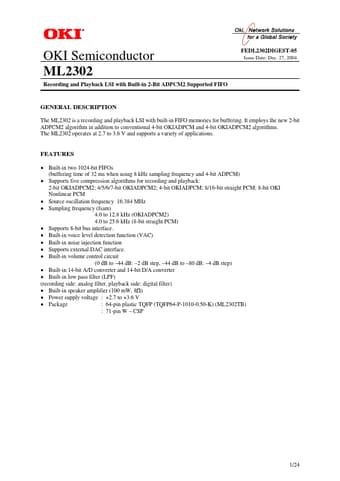

Preview of ML2302 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
ML2302
Manufacturer
OKI Semiconductor
File Size
197.30 KB
Datasheet
ML2302_OKISemiconductor.pdf
Description
Recording and Playback LSI

Features

* Built-in two 1024-bit FIFOs (buffering time of 32 ms when using 8 kHz sampling frequency and 4-bit ADPCM)
* Supports five compression algorithms for recording and playback: 2-bit OKIADPCM2; 4/5/6/7-bit OKIADPCM2; 4-bit OKIADPCM; 8/16-bit straight PCM; 8-bit OKI Nonlinear PCM
