ML2724 Datasheet, Datasheet, Micro Linear

ML2724 Features

• Datasheet Complete 2.4GHz FSK Transceiver - High data rate (1.5Mbps) - -90dBm sensitivity (DSSS modulation) - 3dBm Output Power (differential, typical) Closed Loop TX Modulation Low IF Receiver:

PDF File Details

Part number:

ML2724

Manufacturer:

Micro Linear

File Size:

864.63kb

Download:

📄 Datasheet

Description:

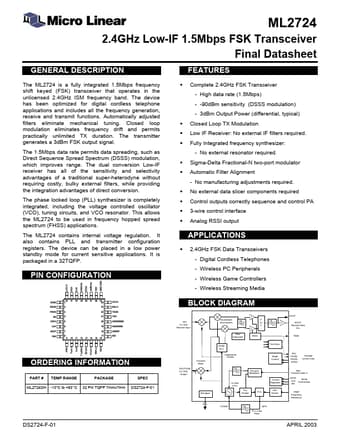

2.4ghz low-if 1.5mbps fsk transceiver final datasheet. The ML2724 is a fully integrated 1.5Mbps frequency shift keyed (FSK) transceiver that operates in the unlicensed 2.4GHz ISM frequency

ML2724 Application

• Applications and includes all the frequency generation, receive and transmit functions. Automatically adjusted filters eliminate mechanical tuning.

TAGS

ML2724

Micro Linear
