MGR-700 General Purpose Schottky Diodes

The MicroMetrics MGR-700 Series are general purpose Schottky Barrier diodes specially designed to achieve a high voltage breakdown. This series of diodes can be used in the UHF and VHF frequency bands for pulse shaping, sampling and as fast logic gates. Applications The MGR-700 Series Schottky Barri.

MGR-700 Features

* Fast Switching

* High Breakdown Voltage

* Low Cost Packaging

* Chip, Glass, Ceramic 1.0 (25.4) MIN. CATHODE BAND GLASS .175 (4.44) .150 (3.81) .075 (1.91) .068 (1.73) 1.0 (25.4) MIN. .016 (.41) .014 (.36) CS75 Cp = .07pF L = 1.1nH Schottky Diodes 86 MicroMet

MGR-700-MicroMetrics.pdf

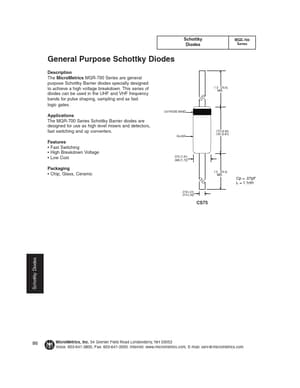

Preview of MGR-700 PDF
MGR-700 Datasheet Preview Page 2

Datasheet Details

Part number:

MGR-700

Manufacturer:

MicroMetrics

File Size:

26.70 KB

Description:

General purpose schottky diodes.
