LD24E-xx-xxx, PWM Control Constant Current Output DC/DC LED Drivers

LD24E-xx-xxx S Series Low Cost, PWM Control Constant Current Output DC/DC LED Drivers Electrical Speciﬁcations Speciﬁcations typical @ +25°C, nominal .

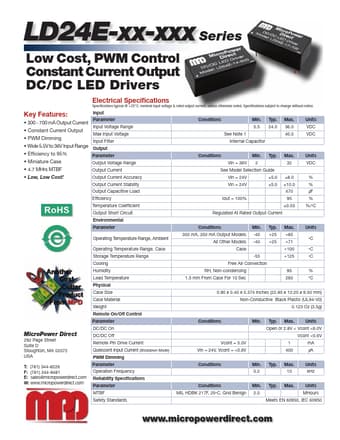

datasheet Preview Page 1 from Datasheet4u.com

LD24E-xx-xxx_MicroPowerDirect.pdf

LD24E-xx-xxx Datasheet Preview — Preview of LD24E-xx-xxx PDF

Datasheet Details

Part number:

LD24E-xx-xxx

Manufacturer:

MicroPower Direct

File Size:

340.95 KB

Description:

PWM Control Constant Current Output DC/DC LED Drivers

Features

* 300 - 700 mA Output Current
* Constant Current Output
* PWM Dimming Input Parameter Input Voltage Range Max Input Voltage Input Filter Conditions Vin = 36V Vin = 24V Vin = 24V Iout = 100% Regulated At Rated Output Current Conditions 300 mA, 350 mA Output Models All Other

Applications

* the addition of the input ﬁlter components (C1, L1 & C2) will help to reduce conducted emissions. 2. Input gnd (Pin 4) cannot be connected to the output. 3. If not being used, the PWM/Control input (Pin 3) should be left open. Typical Connection: Parallel Output Connection Notes: 1. A positive tem
