16C84 - PIC16C84

Product Overview

Microchip Technology

Datasheet Details

Part number	16C84
Manufacturer	Microchip Technology
File Size	1.02 MB
Description	PIC16C84
Datasheet	16C84 Datasheet

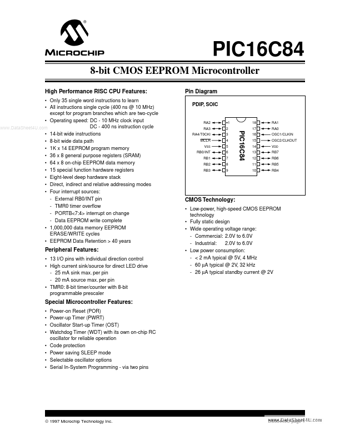

Additional preview pages of the 16C84 datasheet.

Product details

Description

3 2.0 PIC16C84 Device Varieties 5 3.0 Architectural Overview 7 4.0 Memory Organization 11 5.0 I/O Ports 19 6.0 Timer0 Module and TMR0 Register 25 7.0 Data EEPROM Memory 31 8.0 Special

Features

Only 35 single word instructions to learn.
All instructions single cycle (400 ns @ 10 MHz) except for program branches which are two-cycle.
Operating speed: DC - 10 MHz clock input DC - 400 ns instruction cycle www. DataSheet4U. com.
14-bit wide instructions.
8-bit wide data path.
1K x 14 EEPROM program memory.
36 x 8 general purpose registers (SRAM).
64 x 8 on-chip EEPROM data memory.
15 special function hardware r.
