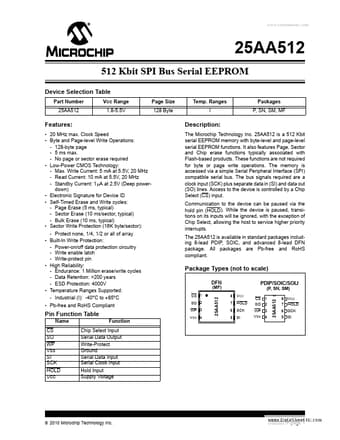

Part number: 25AA512
Manufacturer: Microchip (https://www.microchip.com/) Technology
File Size: 809.14KB
Download: 📄 Datasheet
Description: 512 Kbit SPI Bus Serial EEPROM
* 20 MHz max. Clock Speed
* Byte and Page-level Write Operations: - 128-byte page - 5 ms max. - No page or sector erase required
* Low-Power CMOS Technology:.
The Microchip Technology Inc. 25AA512 is a 512 Kbit serial EEPROM memory with byte-level and page-level serial EEPROM functions. It also features Page, Sector and Chip erase functions typically associated with Flash-based products. These functions a.
Image gallery
