MCP2003 - LIN J2602 Transceiver

Features

  • The MCP2003/2003A and MCP2004/2004A are compliant with Local Interconnect Network (LIN) Bus Specifications 1.3, 2.0 and 2.1 and are compliant to SAE J2602.
  • Support Baud Rates up to 20 kbaudwith LIN-Compatible Output Driver.
  • 43V Load Dump Protected.
  • Very Low High Electromagnetic Immunity (EMI) meets Stringent Original Equipment Manufacturers (OEM) Requirements.
  • Very High Electrostatic Discharge (ESD) Immunity: - >20 kV on VBB (IEC 61000-4-2) - >14 k.

📥 Download Datasheet

Datasheet preview – MCP2003

Datasheet Details

Part number MCP2003
Manufacturer Microchip Technology
File Size 557.59 KB
Description LIN J2602 Transceiver
Datasheet download datasheet MCP2003 Datasheet
Additional preview pages of the MCP2003 datasheet.

📁 Similar Datasheet

  • MCP2003A - LIN J2602 Transceiver (Microchip)
  • MCP2003B - LIN Transceiver (Microchip)
  • MCP2004A - LIN J2602 Transceiver (Microchip)
  • MCP2021A - LIN Transceiver (Microchip)
  • MCP2021P - LIN Transceiver (Microchip)
  • MCP2022A - LIN Transceiver (Microchip)
  • MCP2022P - LIN Transceiver (Microchip)
  • MCP2035 - Analog Front-End Device (Microchip)
  • MCP2050 - LIN Transceiver (Microchip)
  • MCP20N06 - N-Channel 60-V (D-S) MOSFET (Freescale)
Other Datasheets by Microchip Technology

Full PDF Text Transcription

Click to expand full text

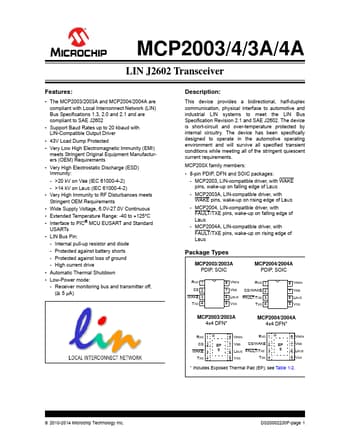

MCP2003/4/3A/4A LIN J2602 Transceiver Features: • The MCP2003/2003A and MCP2004/2004A are compliant with Local Interconnect Network (LIN) Bus Specifications 1.3, 2.0 and 2.1 and are compliant to SAE J2602 • Support Baud Rates up to 20 kbaudwith LIN-Compatible Output Driver • 43V Load Dump Protected • Very Low High Electromagnetic Immunity (EMI) meets Stringent Original Equipment Manufacturers (OEM) Requirements • Very High Electrostatic Discharge (ESD) Immunity: - >20 kV on VBB (IEC 61000-4-2) - >14 kV on LBUS (IEC 61000-4-2) • Very High Immunity to RF Disturbances meets Stringent OEM Requirements • Wide Supply Voltage, 6.0V-27.
