MCP6041 Datasheet, amps equivalent, Microchip Technology

MCP6041 Features

  • Amps
  • Low Quiescent Current: 600 nA/amplifier (typical)
  • Rail-to-Rail Input/Output
  • Gain Bandwidth Product: 14 kHz (typical)
  • Wide Supply Voltage Range: 1

PDF File Details

Part number:

MCP6041

Manufacturer:

Microchip ↗ Technology

File Size:

953.94kb

Download:

📄 Datasheet

Description:

Rail-to-rail input/output op amps. The MCP6041/2/3/4 family of operational amplifiers (op amps) from Microchip Technology Inc. operate with a single supply voltage as l

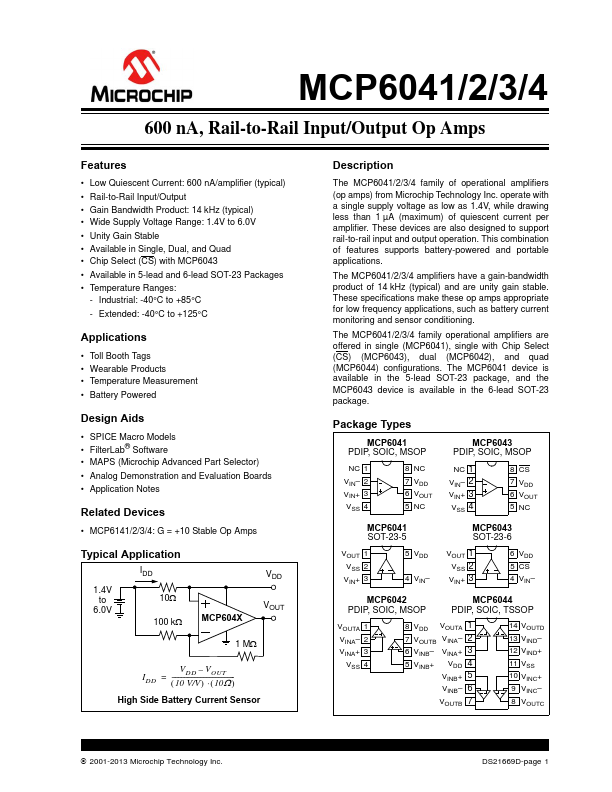

Datasheet Preview: MCP6041 📥 Download PDF (953.94kb)

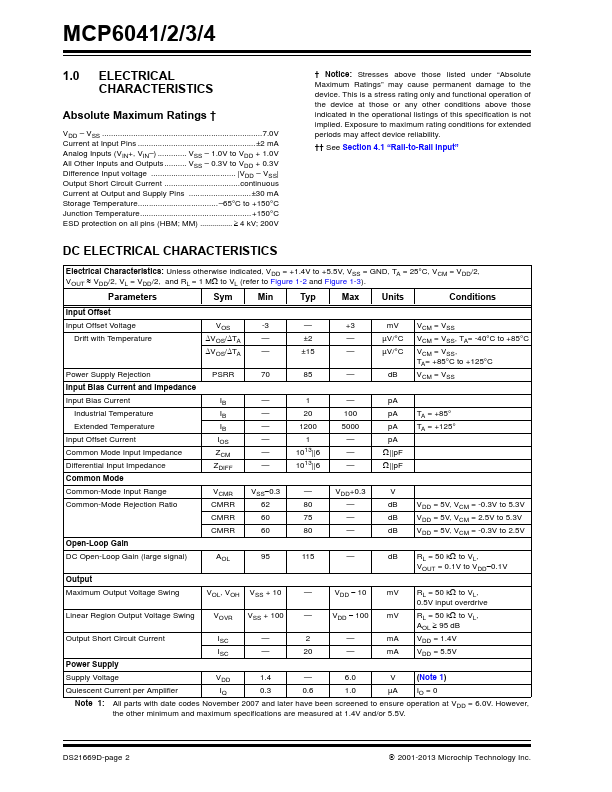

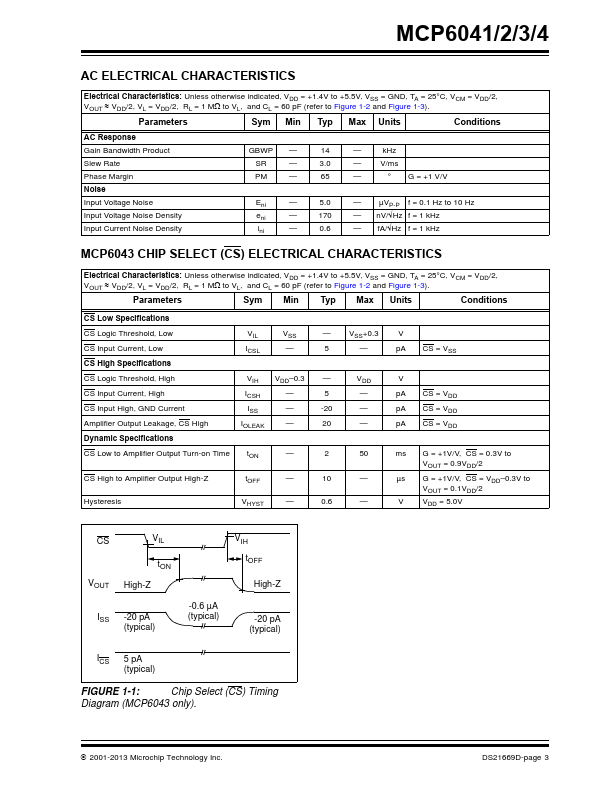

Page 2 of MCP6041 Page 3 of MCP6041

MCP6041 Application

  • Applications
  • Toll Booth Tags
  • Wearable Products
  • Temperature Measurement
  • Battery Powered Design Aids

TAGS

MCP6041
Rail-to-Rail
Input
Output
Amps
Microchip Technology
