MCP6043, MCP6041 - Rail-to-Rail Input/Output Op Amps

Microchip Technology

📥 Download Datasheet

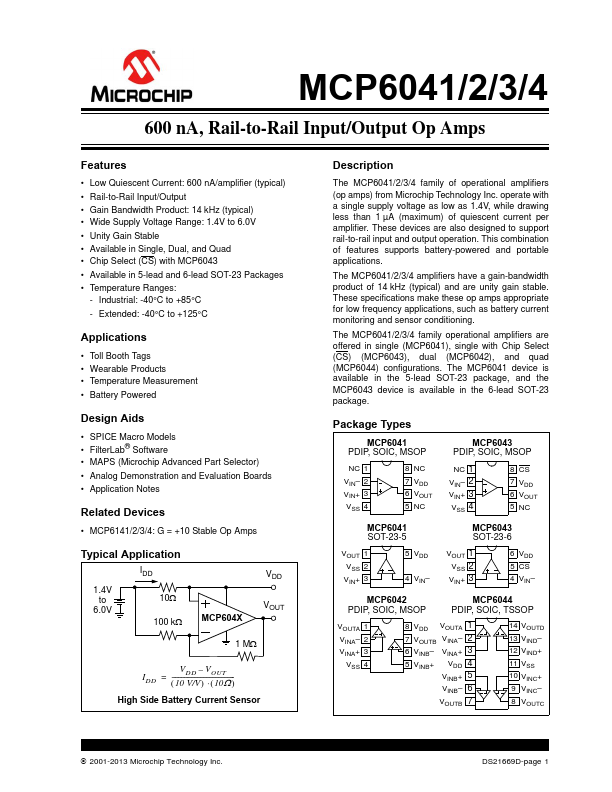

MCP6043 Datasheet Preview — This datasheet PDF includes multiple part numbers: MCP6043, MCP6041. Please refer to the document for exact specifications by model.

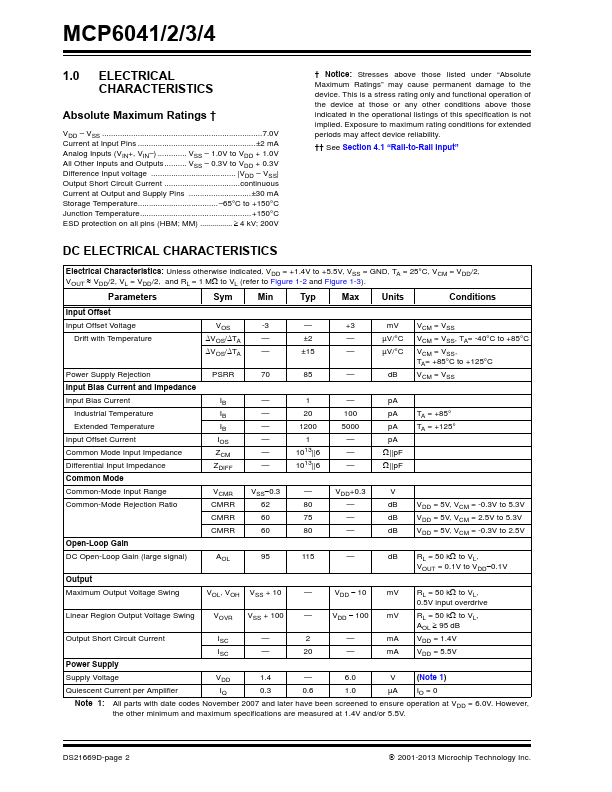

datasheet Preview Page 2

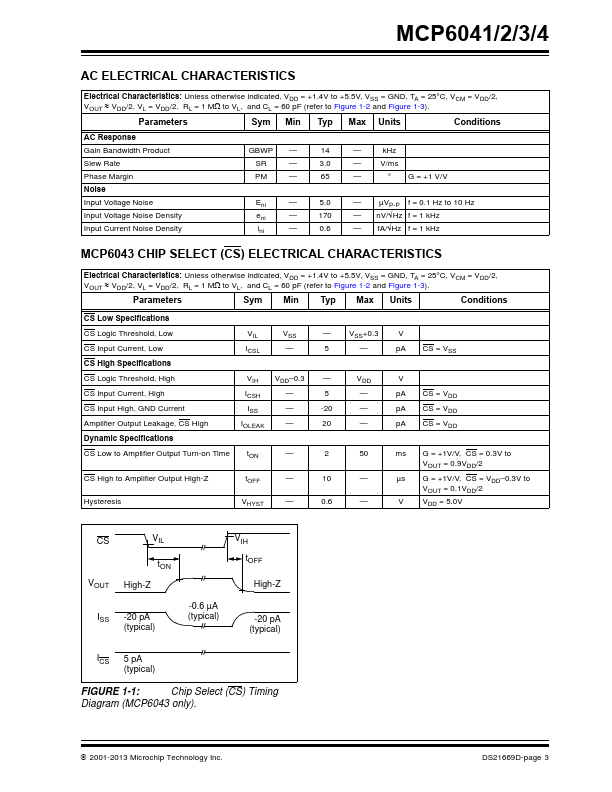

datasheet Preview Page 3

Datasheet Details

Part number	MCP6043, MCP6041
Manufacturer	Microchip ↗ Technology
File Size	953.94 KB
Description	Rail-to-Rail Input/Output Op Amps
Datasheet	MCP6041-MicrochipTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: MCP6043, MCP6041. Please refer to the document for exact specifications by model.

MCP6043 Product details

Description

The MCP6041/2/3/4 family of operational amplifiers (op amps) from Microchip Technology Inc.

Features

Low Quiescent Current: 600 nA/amplifier (typical).
Rail-to-Rail Input/Output.
Gain Bandwidth Product: 14 kHz (typical).
Wide Supply Voltage Range: 1.4V to 6.0V.
Unity Gain Stable.
Available in Single, Dual, and Quad.
Chip Select (CS) with MCP6043.
Available in 5-lead and 6-lead SOT-23 Packages.
Temperature Ranges: - Industrial: -40°C to +85°C - Extended: -40°C to +125°C.
