MCP98242, Memory Module Temperature Sensor

www.DataSheet4U.com MCP98242 Memory Module Temperature Sensor w/EEPROM for SPD .
Microchip Technology Inc.

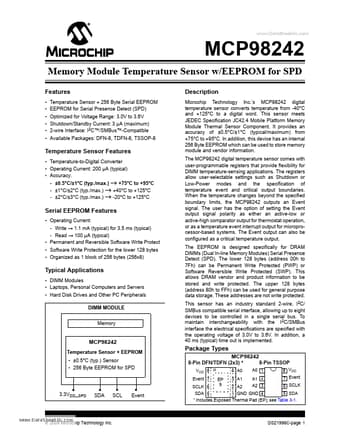

datasheet Preview Page 1 from Datasheet4u.com

MCP98242_MicrochipTechnology.pdf

MCP98242 Datasheet Preview — Preview of MCP98242 PDF

Datasheet Details

Part number:

MCP98242

Manufacturer:

Microchip ↗ Technology

File Size:

1.31 MB

Description:

Memory Module Temperature Sensor

Features

* Temperature Sensor + 256 Byte Serial EEPROM EEPROM for Serial Presence Detect (SPD) Optimized for Voltage Range: 3.0V to 3.6V Shutdown/Standby Current: 3 µA (maximum) 2-wire Interface: I2C™/SMBus™-Compatible Available Packages: DFN-8, TDFN-

Applications

* The registers allow user-selectable settings such as Shutdown or Low-Power modes and the specification of temperature event and critical output boundaries. When the temperature changes beyond the specified boundary limits, the MCP98242 outputs an Event signal. The user has the option of setting the
