PIC16F1824, PIC16LF1824 Datasheet - Microchip Technology

PIC16F1824 14/20-Pin Flash Microcontrollers

PIC12(L)F1822/16(L)F1823 8/14-Pin Flash Microcontrollers with XLP Technology High-Performance RISC CPU Only 49 Instructions to Learn: - All single-cycle instructions except branches Operating Speed: - DC 32 MHz oscillator/clock input - DC 125 ns instruction cycle Interrupt Capability with Automatic Context Saving 16-Level Deep Hardware Stack with Optional Overflow/Underflow Reset Direct, Indirect and Relative Addressing modes.

PIC16F1824 Features

* Full 5.5V Operation

* PIC12F1822/16F1823

* 1.8V-3.6V Operation

* PIC12LF1822/16LF1823

* Self-Reprogrammable under Software Control

* Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

* Programmable Brown-out Rese

PIC16LF1824_MicrochipTechnology.pdf

This datasheet PDF includes multiple part numbers: PIC16F1824, PIC16LF1824. Please refer to the document for exact specifications by model.

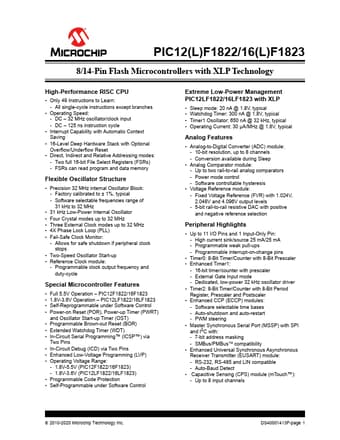

PIC16F1824 Datasheet Preview Page 2 PIC16F1824 Datasheet Preview Page 3

Datasheet Details

Part number:

PIC16F1824, PIC16LF1824

Manufacturer:

Microchip ↗ Technology

File Size:

4.34 MB

Description:

14/20-pin flash microcontrollers.

Note:

This datasheet PDF includes multiple part numbers: PIC16F1824, PIC16LF1824.
Please refer to the document for exact specifications by model.
