PIC16F1825 Datasheet - Microchip

PIC16F1825 Flash Microcontrollers

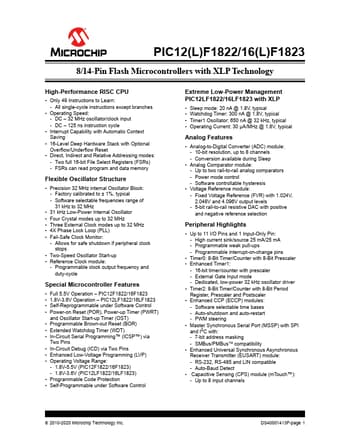

PIC12(L)F1822/16(L)F1823 8/14-Pin Flash Microcontrollers with XLP Technology High-Performance RISC CPU Only 49 Instructions to Learn: - All single-cycle instructions except branches Operating Speed: - DC 32 MHz oscillator/clock input - DC 125 ns instruction cycle Interrupt Capability with Automatic Context Saving 16-Level Deep Hardware Stack with Optional Overflow/Underflow Reset Direct, Indirect and Relative Addressing modes.

PIC16F1825 Features

* Full 5.5V Operation

* PIC12F1822/16F1823

* 1.8V-3.6V Operation

* PIC12LF1822/16LF1823

* Self-Reprogrammable under Software Control

* Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

* Programmable Brown-out Rese

PIC16F1825 Datasheet (4.34 MB)
