PIC16F1938, PIC16F1937, 8-Bit CMOS Microcontrollers

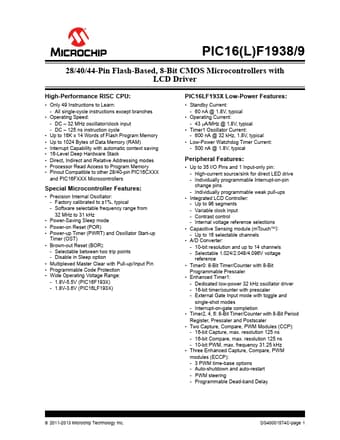

PIC16(L)F1938/9 28/40/44-Pin Flash-Based, 8-Bit CMOS Microcontrollers with LCD Driver High-Performance RISC CPU: * Only 49 Instructions to Le.

PIC16F1937_MicrochipTechnology.pdf

PIC16F1938 Datasheet Preview — This datasheet PDF includes multiple part numbers: PIC16F1938, PIC16F1937. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PIC16F1938, PIC16F1937

Manufacturer:

Microchip ↗ Technology

File Size:

8.79 MB

Description:

8-Bit CMOS Microcontrollers

Note:

This datasheet PDF includes multiple part numbers: PIC16F1938, PIC16F1937.
Please refer to the document for exact specifications by model.

Features

* Precision Internal Oscillator: - Factory calibrated to ±1%, typical - Software selectable frequency range from 32 MHz to 31 kHz
* Power-Saving Sleep mode
* Power-on Reset (POR)
* Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
* Brown-out Reset (B

Applications

* PIC16(L)F193X/194X FAMILY TYPES
* 2 Comparators: - Rail-to-rail inputs/outputs - Power mode control - Software enable hysteresis
* Voltage Reference module: - Fixed Voltage Reference (FVR) with 1.024V, 2.048V and 4.096V output levels - 5-bit rail-to-rail resistive DAC with positive
