PIC16F723, PIC16F72X Datasheet - Microchip Technology

PIC16F723 8-Bit CMOS Microcontrollers

PIC16(L)F722/3/4/6/7 28/40/44-Pin Flash Microcontrollers with XLP Technology Devices Included In This Data Sheet: PIC16F722/3/4/6/7 Devices: PIC16F722 PIC16F723 PIC16F724 PIC16F726 PIC16F727 PIC16LF722/3/4/6/7 Devices: PIC16LF722 PIC16LF723 PIC16LF724 PIC16LF726 PIC16LF727 High-Performance RISC CPU: Only 35 Instructions to Learn: - All single-cycle instructions except branches

PIC16F723 Features

* Precision Internal Oscillator: - 16 MHz or 500 kHz operation - Factory calibrated to ±1%, typical - Software tunable - Software selectable ÷1, ÷2, ÷4 or ÷8 divider

* 1.8V-5.5V Operation

* PIC16F722/3/4/6/7

* 1.8V-3.6V Operation

* PIC16LF722/3/4/6/7

PIC16F72X-MicrochipTechnology.pdf

This datasheet PDF includes multiple part numbers: PIC16F723, PIC16F72X. Please refer to the document for exact specifications by model.

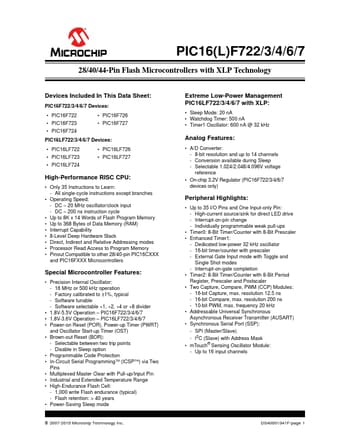

PIC16F723 Datasheet Preview Page 2 PIC16F723 Datasheet Preview Page 3

Datasheet Details

Part number:

PIC16F723, PIC16F72X

Manufacturer:

Microchip ↗ Technology

File Size:

2.56 MB

Description:

8-bit cmos microcontrollers.

Note:

This datasheet PDF includes multiple part numbers: PIC16F723, PIC16F72X.
Please refer to the document for exact specifications by model.
