PIC16F723A, PIC16F722A Datasheet - Microchip Technology

PIC16F723A 28-Pin Flash Microcontrollers

PIC16(L)F722A/723A 28-Pin Flash Microcontrollers with XLP Technology Devices Included In This Data Sheet: PIC16F722A/723A Devices: PIC16F722A PIC16F723A PIC16LF722A/723A Devices: PIC16LF722A PIC16LF723A High-Performance RISC CPU: Only 35 Instructions to Learn: - All single-cycle instructions except branches Operating Speed: - DC 20 MHz oscillator/clock input - DC 200 ns instruction cycle Up to 4K x 14 Word.

PIC16F723A Features

* Precision Internal Oscillator: - 16 MHz or 500 kHz operation - Factory-calibrated to ±1%, typical - Software tunable - Software selectable ÷1, ÷2, ÷4 or ÷8 divider

* 1.8V-5.5V Operation

* PIC16F722A/723A

* 1.8V-3.6V Operation

* PIC16LF722A/723A

* Po

PIC16F722A_MicrochipTechnology.pdf

This datasheet PDF includes multiple part numbers: PIC16F723A, PIC16F722A. Please refer to the document for exact specifications by model.

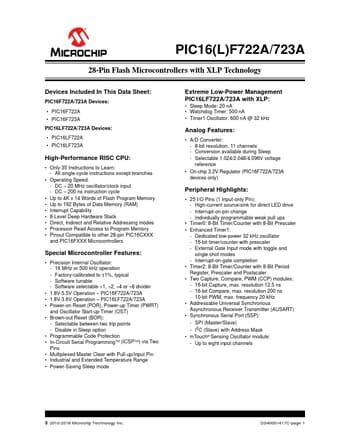

PIC16F723A Datasheet Preview Page 2 PIC16F723A Datasheet Preview Page 3

Datasheet Details

Part number:

PIC16F723A, PIC16F722A

Manufacturer:

Microchip ↗ Technology

File Size:

2.83 MB

Description:

28-pin flash microcontrollers.

Note:

This datasheet PDF includes multiple part numbers: PIC16F723A, PIC16F722A.
Please refer to the document for exact specifications by model.
