PIC16LF1519, PIC16F1516 Datasheet - Microchip Technology

PIC16LF1519 28/40/44-Pin Flash Microcontroller

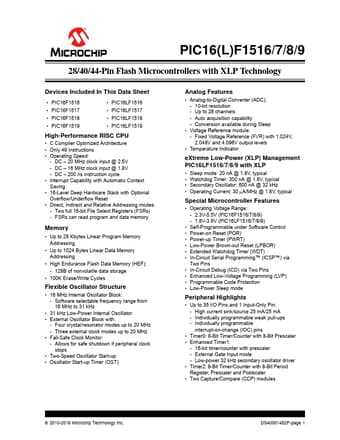

PIC16(L)F1516/7/8/9 28/40/44-Pin Flash Microcontrollers with XLP Technology Devices Included In This Data Sheet PIC16F1516 PIC16F1517 PIC16F1518 PIC16F1519 PIC16LF1516 PIC16LF1517 PIC16LF1518 PIC16LF1519 High-Performance RISC CPU C Compiler Optimized Architecture Only 49 Instructions Operating Speed: - DC 20 MHz clock input @ 2.5V - DC 16 MHz clock input @ 1.8V - .

PIC16LF1519 Features

* Analog-to-Digital Converter (ADC): - 10-bit resolution - Up to 28 channels - Auto acquisition capability - Conversion available during Sleep

* Voltage Reference module: - Fixed Voltage Reference (FVR) with 1.024V, 2.048V and 4.096V output levels

* Temperature Indicator eXtr

PIC16F1516_MicrochipTechnology.pdf

This datasheet PDF includes multiple part numbers: PIC16LF1519, PIC16F1516. Please refer to the document for exact specifications by model.
PIC16LF1519 Datasheet Preview Page 2 PIC16LF1519 Datasheet Preview Page 3

Datasheet Details

Part number:

PIC16LF1519, PIC16F1516

Manufacturer:

Microchip ↗ Technology

File Size:

4.22 MB

Description:

28/40/44-pin flash microcontroller.

Note:

This datasheet PDF includes multiple part numbers: PIC16LF1519, PIC16F1516.
Please refer to the document for exact specifications by model.
