PIC16LF1508, PIC16LF1509 Datasheet - Microchip

PIC16LF1508 8-Bit Microcontrollers

PIC16(L)F1508/9 20-Pin Flash, 8-Bit Microcontrollers with XLP Technology High-Performance RISC CPU: C Compiler Optimized Architecture Only 49 Instructions Operating Speed: - DC 20 MHz clock input - DC 200 ns instruction cycle Interrupt Capability with Automatic Context Saving 16-Level Deep Hardware Stack with Optional Overflow/Underflow Reset Direct, Indirect and Relative Addressing modes: - Two full 16-bit File Se.

PIC16LF1508 Features

* Operating Voltage Range: - 1.8V to 3.6V (PIC16LF1508/9) - 2.3V to 5.5V (PIC16F1508/9)

* Self-Programmable under Software Control

* Power-on Reset (POR)

* Power-up Timer (PWRT)

* Programmab

PIC16LF1509_Microchip.pdf

This datasheet PDF includes multiple part numbers: PIC16LF1508, PIC16LF1509. Please refer to the document for exact specifications by model.

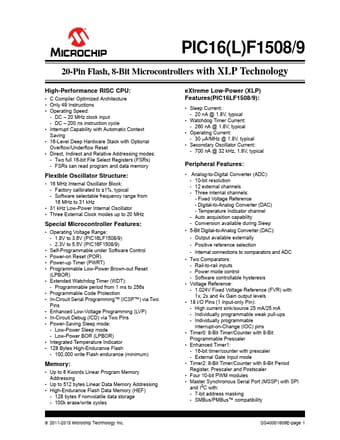

PIC16LF1508 Datasheet Preview Page 2 PIC16LF1508 Datasheet Preview Page 3

Datasheet Details

Part number:

PIC16LF1508, PIC16LF1509

Manufacturer:

Microchip ↗

File Size:

2.93 MB

Description:

8-bit microcontrollers.

Note:

This datasheet PDF includes multiple part numbers: PIC16LF1508, PIC16LF1509.
Please refer to the document for exact specifications by model.
