TC1428, TC1426, 1.2A Dual High-Speed MOSFET Driver

TC1426/TC1427/TC1428 1.2A Dual High-Speed MOSFET Drivers .
The TC1426/TC1427/TC1428 are a family of 1.

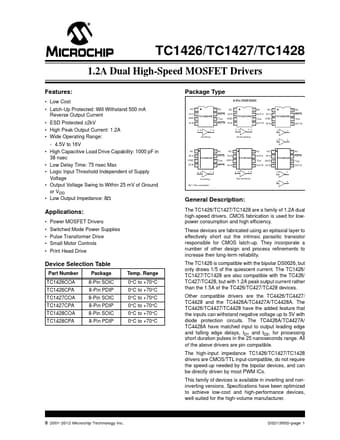

datasheet Preview Page 1 from Datasheet4u.com

TC1426_MicrochipTechnology.pdf

TC1428 Datasheet Preview — This datasheet PDF includes multiple part numbers: TC1428, TC1426. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TC1428, TC1426

Manufacturer:

Microchip ↗ Technology

File Size:

754.69 KB

Description:

1.2A Dual High-Speed MOSFET Driver

Note:

This datasheet PDF includes multiple part numbers: TC1428, TC1426.
Please refer to the document for exact specifications by model.

Features

* Low Cost
* Latch-Up Protected: Will Withstand 500 mA Reverse Output Current
* ESD Protected ±2kV
* High Peak Output Current: 1.2A
* Wide Operating Range: - 4.5V to 16V
* High Capacitive Load Drive Capability: 1000 pF in 38 nsec
* Low Delay T

Applications

* Power MOSFET Drivers
* Switched Mode Power Supplies
* Pulse Transformer Drive
* Small Motor Controls
* Print Head Drive Device Selection Table Part Number Package TC1426COA TC1426CPA TC1427COA TC1427CPA TC1428COA TC1428CPA 8-Pin SOIC 8-Pin PDIP 8-Pin SO
