TC9402 Voltage-to-Frequency/Frequency-to-Voltage Converters

The TC9400/TC9401/TC9402 are low cost voltage-tofrequency (V/F) converters, utilizing low power CMOS technology. The converters accept a variable analog input signal and generate an output pulse train, whose frequency is linearly proportional to the input voltage. The devices can also be used as hig.

TC9402 Features

* VOLTAGE-TO-FREQUENCY

* Choice of Linearity - TC9401: 0.01% - TC9400: 0.05% - TC9402: 0.25%

* DC to 100kHz (F/V) or 1Hz to 100kHz (V/F)

* Low Power Dissipation: 27mW (Typ.)

* Single/Dual Supply Operation - +8V to +15V or ±4V to ±7.5V

* Gain Temperature Stabilit

TC9402_MicrochipTechnology.pdf

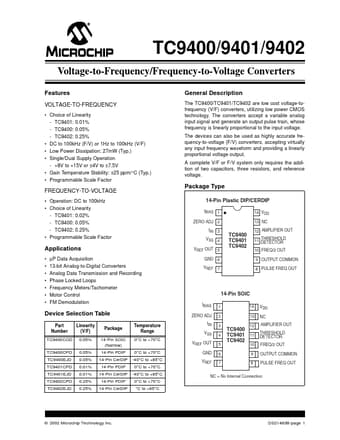

TC9402 Datasheet Preview — Preview of TC9402 PDF

Datasheet Details

Part number:

TC9402

Manufacturer:

Microchip ↗ Technology

File Size:

504.11 KB

Description:

Voltage-to-frequency/frequency-to-voltage converters.
