TC9400

VOLTAGE-TO-FREQUENCY/FREQUENCY-TO-VOLTAGE CONVERTERS

TC9400 Features

* Voltage-to-Frequency s Choice of Guaranteed Linearity: TC9401 0.01% TC9400 0.05% TC9402 0.25% DC to 100 kHz (F/V) or 1Hz to 100kHz (V/F) Low Power Dissipation 27mW Typ Single/Dual Supply Operation + 8V to + 15V or ± 4V to ± 7.5V Gain Temperature Stability ± 25 ppm/°C Typ Programmable Scale Fac

TC9400 General Description

The TC9400/TC9401/TC9402 are low-cost voltage-tofrequency (V/F) converters utilizing low power CMOS technology. The converters accept a variable analog input signal and generate an output pulse train whose frequency is linearly proportional to the input voltage. The devices can also be used as highl.

TC9400 Datasheet (154.03 KB)

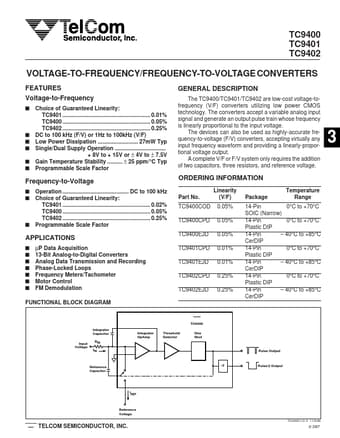

Preview of TC9400 PDF

Datasheet Details

Part number:

TC9400

Manufacturer:

TelCom Semiconductor

File Size:

154.03 KB

Description:

Voltage-to-frequency/frequency-to-voltage converters.
