TC901 Datasheet - TelCom Semiconductor

MONOLITHIC/ AUTO-ZEROED OPERATIONAL AMPLIFIER

TC901 Features

* s Second-Generation Monolithic, Chopper-Stabilized Op Amp s No External Capacitors Required s Single-Supply Operation ±15V or 5V to 32V s Supply Current 450µA at 15V, Typ s Input Offset Voltage 7µV, Typ s Common-Mode Rejection Ratio 140dB, Typ s Open-Loop Gain 140dB Into 10k Load, Typ s Input N

TC901 General Description

The TC901 is a monolithic, auto-zeroed operational amplifier. It is a second-generation design of the TC91X CMOS chopper-stabilized op amps with on-chip capacitors. Elimination of the external capacitors allows the designer to increase reliability, lower cost, and simplify design by lowering parts c.

TC901 Datasheet (55.96 KB)

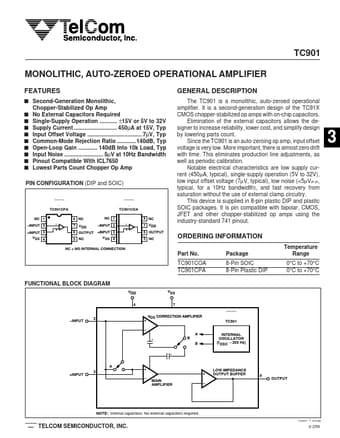

TC901 Datasheet Preview — Preview of TC901 PDF

Datasheet Details

Part number:

TC901

Manufacturer:

TelCom Semiconductor

File Size:

55.96 KB

Description:

Monolithic/ auto-zeroed operational amplifier.
