TC9012F Datasheet - ETC

TC9012F - special off screen remote control code transmitter

TC9012 is a special off screen remote control code transmitter.

It includes oscillator, divider timing generator, system code latch, data storage, key scan input, key scan output, the carrier control and output units.

Its internal 8-bit system code setting can be achieved with 256 points while operating the transmitter and the interfering transmitter.

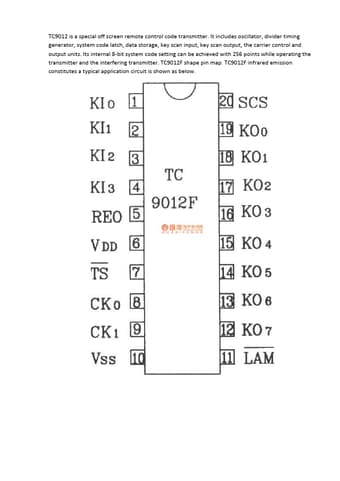

TC9012F shape pin map.

TC9012F infrared emission constitutes a typical application circuit is shown as below.

TC9012F-ETC.pdf

Preview of TC9012F PDF
TC9012F Datasheet Preview Page 2

Datasheet Details

Part number:

TC9012F

Manufacturer:

ETC

File Size:

120.22 KB

Description:

Special off screen remote control code transmitter.
