TC90107FG

Single Channel Video Decoder

TC90107FG Features

* 1. Analog Video signal Input : CVBS 2. Adaptive multi-color decoder (1ch) 3. Sync processing / Video system detection 4. 10bit ADC (1ch) 5. Analog AGC (Sync AGC + Peak AGC) 6. LPF circuit for input analog video signal 7. Y/C separation: 3-line YCS (NTSC/PAL) Band Pass Filter (SECAM) 8. Pic

TC90107FG General Description

No. Pin Name 1 SLVSEL 2 RESET 3 VDD1A 4 VSS1 5 TEST0 6 TEST1 7 CON2 8 CON1 9 CON0 10 NotUsed 11 VSS2A 12 CLK 13 NotUsed 14 IOVDD1A 15 NotUsed 16 VDD2A 17 DATA7 18 VSS3 19 DATA6 20 DATA5 21 DATA4 22 VSS4A 23 DATA3 24 DATA2 25 VSS5 26 DATA1 27 DATA0 28 NotUsed 29 IOVDD2A 30 VDD3A 31 NotUsed 32 VSS6A .

TC90107FG Datasheet (614.78 KB)

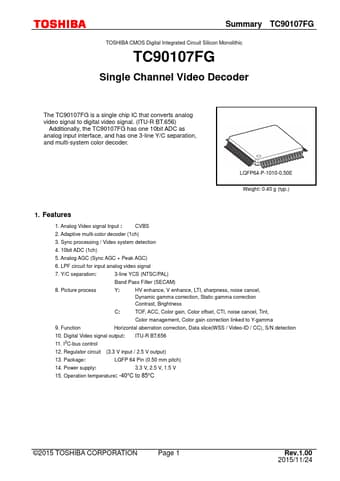

Preview of TC90107FG PDF

Datasheet Details

Part number:

TC90107FG

Manufacturer:

Toshiba ↗

File Size:

614.78 KB

Description:

Single channel video decoder.
Summary TC90107FG TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC90107FG Single Channel Video Decoder The TC90107FG is a single chip IC.
