TC90104AFG Datasheet - Toshiba

TC90104AFG - Multi System Video Decoder

Pin No.

Pin Name Pin Function Pin type Standard withstand voltage [V] Processing at unused time 1 VDDDA 2.5 V power supply for DAC VDD 2.5 - 2 PLLIN Input of PLL circuit for clock IN 2.5 - 3 VDDPLL 2.5 V power supply for PLL circuit VDD 2.5 - 4 VCOFIL VCO control bias for

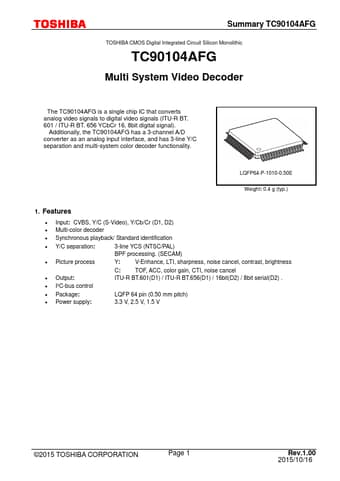

TC90104AFG Features

* Input: CVBS, Y/C (S-Video), Y/Cb/Cr (D1, D2)

* Multi-color decoder

* Synchronous playback/ Standard identification

* Y/C separation: 3-line YCS (NTSC/PAL) BPF processing. (SECAM)

* Picture process Y: V-Enhance, LTI, sharpness, noise cancel, contrast
