TC90105FG

Dual channel Video Decoder

TC90105FG Features

* 1. Video input: CVBS, Y/C separate signal (S-Video) 2. Adaptive multi-standard detection / sync processing 3. Synchronous playback / Standard identification 4. 2ch 10bit ADC 5. Analog AGC (Sync AGC and Peak AGC) circuit built-in 6. LPF circuit for picture signal input built-in 7. Y/C separation : 3-

TC90105FG General Description

Pin No. Pin Name Pin Type Pin Function 1 SLVSEL 2 TEST0 3 VDD 4 VSS 5 IOVDD 6 DATA15 7 DATA14 8 DATA13 9 DATA12 10 VSS 11 DATA11 12 DATA10 13 DATA9 14 DATA8 15 VDD 16 CON5 17 CON4 18 CON3 19 VSS 20 CLKB 21 CLKA 22 IOVDD 23 CON2 24 CON1 25 CON0 26 VDD 27 DATA7 28 DATA6 29 DATA5 30 DATA4 31 VSS 3.

TC90105FG Datasheet (524.07 KB)

Preview of TC90105FG PDF

Datasheet Details

Part number:

TC90105FG

Manufacturer:

Toshiba ↗

File Size:

524.07 KB

Description:

Dual channel video decoder.

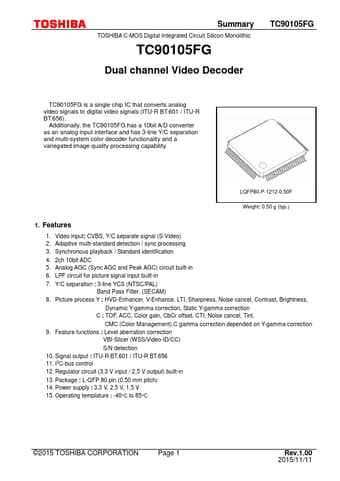

Summary TOSHIBA C-MOS Digital Integrated Circuit Silicon Monolithic TC90105FG Dual channel Video Decoder TC90105FG TC90105FG is a single chip IC tha.
