1N6162A, 1N6138A Datasheet - Microchip

1N6162A Voidless Hermetically Sealed Bidirectional Transient Voltage Suppressors

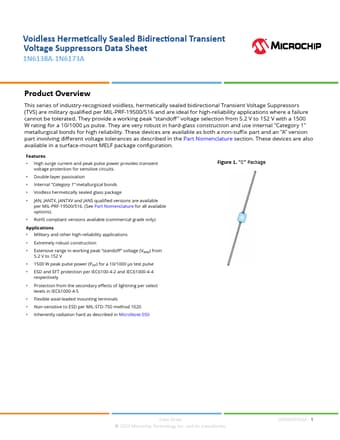

Voidless Hermetically Sealed Bidirectional Transient Voltage Suppressors Data Sheet 1N6138A-1N6173A Product Overview This series of industry-recognized voidless, hermetically sealed bidirectional Transient Voltage Suppressors (TVS) are military qualified per MIL-PRF-19500/516 and are ideal for high-reliability applications where a failure cannot be tolerated. They provide a working peak “standoff” voltage selection from 5.2 V to 152 V with a 1500 W rating for a 10/1000 μs pulse. They are very .

1N6162A Features

* High surge current and peak pulse power provides transient voltage protection for sensitive circuits.

* Double-layer passivation

* Internal “Category 1” metallurgical bonds

* Voidless hermetically sealed glass package

* JAN, JANTX, JANTXV and JANS qualified

1N6138A-Microchip.pdf

This datasheet PDF includes multiple part numbers: 1N6162A, 1N6138A. Please refer to the document for exact specifications by model.
1N6162A Datasheet Preview Page 2 1N6162A Datasheet Preview Page 3

Datasheet Details

Part number:

1N6162A, 1N6138A

Manufacturer:

Microchip ↗

File Size:

571.26 KB

Description:

Voidless hermetically sealed bidirectional transient voltage suppressors.

Note:

This datasheet PDF includes multiple part numbers: 1N6162A, 1N6138A.
Please refer to the document for exact specifications by model.
