23A1024 Datasheet - Microchip

1Mbit SPI Serial SRAM

23A1024 Features

* SPI Bus Interface: - SPI compatible - SDI (dual) and SQI (quad) compatible - 20 MHz Clock rate for all modes

* Low-Power CMOS Technology: - Read current: 3 mA at 5.5V, 20 MHz - Standby current: 4 A at +85°C

* Unlimited Read and Write Cycles

* Zero Write Time

23A1024 General Description

The Microchip Technology Inc. 23X1024(1) are 1-Mbit Serial SRAM devices. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock input (SCK), a data in line (SI) and a data out line (SO). Access to the device is controlled thr.

23A1024 Datasheet (454.90 KB)

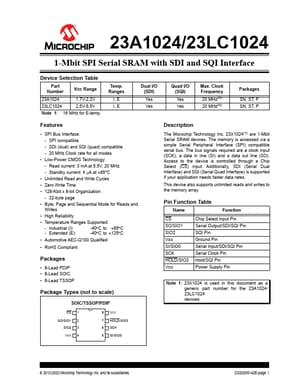

23A1024 Datasheet Preview — Preview of 23A1024 PDF

Datasheet Details

Part number:

23A1024

Manufacturer:

Microchip ↗

File Size:

454.90 KB

Description:

1mbit spi serial sram.
23A1024/23LC1024 1-Mbit SPI Serial SRAM with SDI and SQI Interface Device Selection Table Part Number VCC Range 23A1024 1.7V-2.2V 23LC1024 2.5.
