93C46C - 1K Microwire Compatible Serial EEPROM

This page provides the datasheet information for the 93C46C, a member of the 93C46B 1K Microwire Compatible Serial EEPROM family.

Datasheet Summary

Description

The Microchip Technology Inc.

93XX46A/B/C devices are 1-Kbit low-voltage serial Electrically Erasable PROMs (EEPROM).

Word-selectable devices such as the 93AA46C, 93LC46C or 93C46C are dependent upon external logic levels driving the ORG pin to set word size.

Features

  • Low-Power CMOS Technology.
  • ORG Pin to Select Word Size for ‘46C’ Version.
  • 128 x 8-bit Organization ‘A’ Devices (no ORG).
  • 64 x 16-bit Organization ‘B’ Devices (no ORG).
  • Self-Timed Erase/Write Cycles (including Auto-Erase).
  • Automatic Erase All (ERAL) Before Write All (WRAL).
  • Power-On/Off Data Protection Circuitry.
  • Industry Standard 3-Wire Serial I/O.
  • Device Status Signal (Ready/Busy).
  • Sequential Read Functio.

📥 Download Datasheet

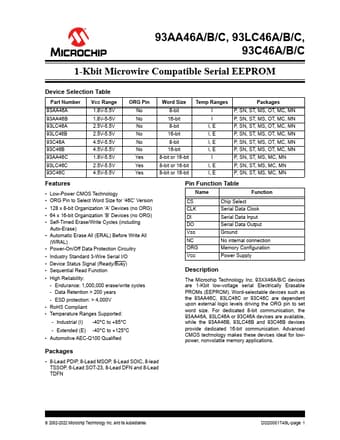

Datasheet preview – 93C46C

Datasheet Details

Part number 93C46C
Manufacturer Microchip
File Size 586.46 KB
Description 1K Microwire Compatible Serial EEPROM
Datasheet download datasheet 93C46C Datasheet
Additional preview pages of the 93C46C datasheet.

📁 Similar Datasheet

  • 93C46CB3 - ST93C46CB (ST Microelectronics)
  • 93C46 - 1K Microwire Serial EEPROM (Microchip Technology)
  • 93C46 - 3-Wire Serial EEPROM (FMD)
  • 93C46 - EEPROM (ATMEL)
  • 93C46A - 3-Wire Serial EEPROM (FMD)
  • 93C46B - 1K Microwire Compatible Serial EEPROM (Microchip Technology)
  • 93C488 - 5x86/486 Single Chip PCI controller (ALD)
  • 93C06 - 256 Bit/1K 5.0V CMOS Serial EEPROM (Microchip Technology)
  • 93C56 - 3-Wire Serial EEPROMs (ATMEL Corporation)
  • 93C56 - 16Kbit/ 8Kbit/ 4Kbit/ 2Kbit/ 1Kbit and 256bit 8-bit or 16-bit wide (STMicroelectronics)
Other Datasheets by Microchip
  • 93C46A - 1K Microwire Compatible Serial EEPROM
  • 93C86A - 16-Kbit Microwire Compatible Serial EEPROM
  • 93C86B - 16-Kbit Microwire Compatible Serial EEPROM
  • 93C86C - 16-Kbit Microwire Compatible Serial EEPROM

Full PDF Text Transcription

Click to expand full text
93AA46A/B/C, 93LC46A/B/C, 93C46A/B/C 1-Kbit Microwire Compatible Serial EEPROM Device Selection Table Part Number 93AA46A 93AA46B 93LC46A 93LC46B 93C46A 93C46B 93AA46C 93LC46C 93C46C VCC Range 1.8V-5.5V 1.8V-5-5V 2.5V-5.5V 2.5V-5.5V 4.5V-5.5V 4.5V-5.5V 1.8V-5.5V 2.5V-5.5V 4.5V-5.
