AVR128DB64 microcontrollers

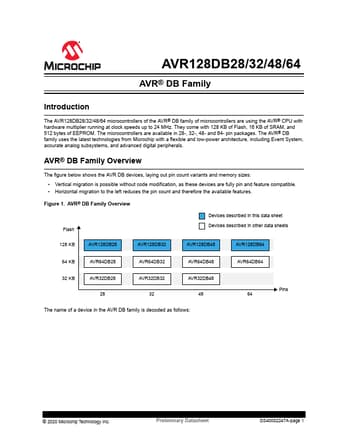

AVR128DB28/32/48/64 AVR® DB Family Introduction The AVR128DB28/32/48/64 microcontrollers of the AVR® DB family of microcontrollers are using the AVR® CPU with hardware multiplier running at clock speeds up to 24 MHz. They come with 128 KB of Flash, 16 KB of SRAM, and 512 bytes of EEPROM. The microcontrollers are available in 28-, 32-, 48- and 64- pin packages. The AVR® DB family uses the latest technologies from Microchip with a flexible and low-power architecture, including Event System, accu.

AVR128DB64 Features

* Figure 1. AVR® DB Family Overview Flash Devices described in this data sheet Devices described in other data sheets 128 KB AVR128DB28 AVR128DB32 AVR128DB48 AVR128DB64 64 KB AVR64DB28 AVR64DB32 AVR64DB48 AVR64DB64 32 KB AVR32DB28 AVR32DB32 AVR32DB48 28 32 48 The name of a device
