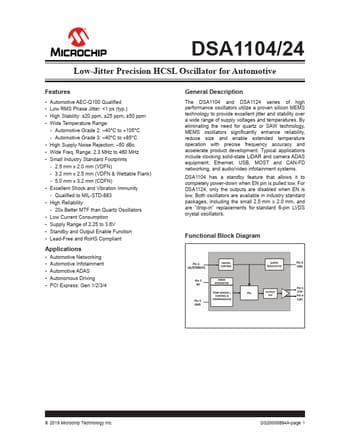

DSA1124 Datasheet, Oscillator, Microchip

DSA1124 Features

• Oscillator
• Automotive AEC-Q100 Qualified
• Low RMS Phase Jitter: <1 ps (typ.)
• High Stability: ±20 ppm, ±25 ppm, ±50 ppm
• Wide Temperature Range: - Automotive G

PDF File Details

Part number:

DSA1124

Manufacturer:

Microchip ↗

File Size:

1.72MB

Download:

📄 Datasheet

Description:

Low-jitter precision hcsl oscillator. The DSA1104 and DSA1124 series of high performance oscillators utilize a proven silicon MEMS technology to provide excellent jitter a

DSA1124 Application

• Applications
• Automotive Networking
• Automotive Infotainment
• Automotive ADAS
• Autonomous Driving
• PCI
