DSA10I100PM - Schottky Diode

DSA10I100PM Description

Schottky Diode Gen ² High Performance Schottky Diode Low Loss and Soft Recovery Single Diode Part number DSA10I100PM 31 DSA10I100PM VRRM I FAV VF =.

DSA10I100PM Features

* / Advantages:
* Very low Vf
* Extremely low switching losses
* Low Irm values
* Improved thermal behaviour
* High reliability circuit operation
* Low voltage peaks for reduced protection circuits

DSA10I100PM Applications

* Rectifiers in switch mode power supplies (SMPS)
* Free wheeling diode in low voltage converters Package: TO-220FP
* Isolation Voltage: 2500 V~
* Industry standard outline
* RoHS compliant
* Epoxy meets UL 94V-0
* Soldering pins for PCB mounting
* Base plate: Plast

📥 Download Datasheet

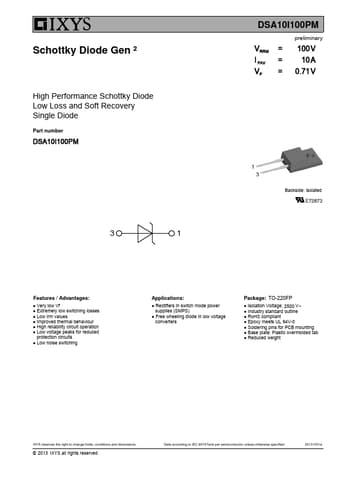

Preview of DSA10I100PM PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DSA10I100PM
Manufacturer
IXYS
File Size
90.23 KB
Datasheet
DSA10I100PM-IXYS.pdf
Description
Schottky Diode
