ECE1099 Datasheet - Microchip

23 x 8 Keyscan Matrix Interface via SMBus or BC-Link Bus

ECE1099 Features

* The ECE1099 is a 40-Pin 3.3V Keyboard Scan Expansion or GPIO Expansion device. The device supports a keyboard scan matrix of 23x8. The device is connected to a Master via the BC-Link interface or via the SMBus. KSI and KSO signals are multiplexed with GPIOs.

* Up to 23x8 Keyboard Scan Matr

ECE1099 Datasheet (557.26 KB)

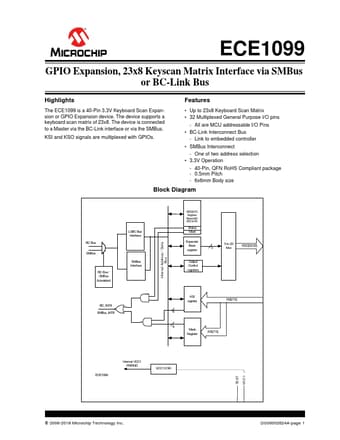

Preview of ECE1099 PDF

Datasheet Details

Part number:

ECE1099

Manufacturer:

Microchip ↗

File Size:

557.26 KB

Description:

23 x 8 keyscan matrix interface via smbus or bc-link bus.
