ECE1105 - 23 x 8 Keyscan Matrix Interface via SMBus or BC-Link Bus

Datasheet Summary

Features

  • The ECE1105 is a 48-Pin 3.3V Keyboard Scan Expansion or GPIO Expansion device. The device supports a keyboard scan matrix of 23x8 and has two PS/2 ports for touchpad and/or pointer stick support. The device is connected to a Master via the BC-Link interface or via the SMBus. KSI and KSO signals are multiplexed with GPIOs.
  • Up to 23x8 Keyboard Scan Matrix.
  • Two PS/2 Ports - Touch Pad Support - Pointer Stick Support.
  • 40 Multiplexed General Purpose I/O pins - All are MCU.

📥 Download Datasheet

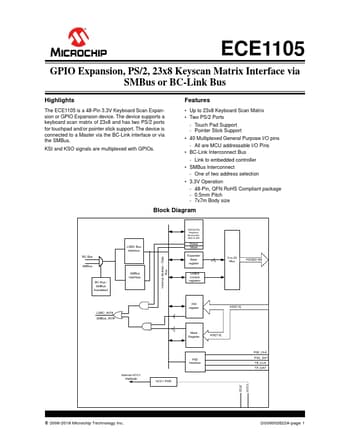

Datasheet preview – ECE1105

Datasheet Details

Part number ECE1105
Manufacturer Microchip
File Size 623.34 KB
Description 23 x 8 Keyscan Matrix Interface via SMBus or BC-Link Bus
Datasheet download datasheet ECE1105 Datasheet
Additional preview pages of the ECE1105 datasheet.

📁 Similar Datasheet

  • ECE4040 - 2.4 GHz Transmitter/Receiver (Georgia)
  • ECE80US12 - AC-DC Power Supplies (XP Power)
  • ECE80US15 - AC-DC Power Supplies (XP Power)
  • ECE80US24 - AC-DC Power Supplies (XP Power)
  • ECE80US36 - AC-DC Power Supplies (XP Power)
  • ECE80US48 - AC-DC Power Supplies (XP Power)
  • ECEA0GKA101 - Aluminum Electrolytic Capacitors (Panasonic)
  • ECEA0GKA221 - Aluminum Electrolytic Capacitors (Panasonic)
  • ECEA0GKA331 - Aluminum Electrolytic Capacitors (Panasonic)
  • ECEA0GKA331Q - Aluminum Electrolytic Capacitors (Panasonic)
Other Datasheets by Microchip
  • ECE1117 - Multi-Function BC-Link/SMBus Companion Device
  • ECE1088 - GPIO Expansion via SMBus or BC-Link Bus
  • ECE1099 - 23 x 8 Keyscan Matrix Interface via SMBus or BC-Link Bus
  • ECE5028 - Advanced I/O BC-Link Companion

Full PDF Text Transcription

Click to expand full text
ECE1105 GPIO Expansion, PS/2, 23x8 Keyscan Matrix Interface via SMBus or BC-Link Bus Highlights Features The ECE1105 is a 48-Pin 3.3V Keyboard Scan Expansion or GPIO Expansion device. The device supports a keyboard scan matrix of 23x8 and has two PS/2 ports for touchpad and/or pointer stick support. The device is connected to a Master via the BC-Link interface or via the SMBus. KSI and KSO signals are multiplexed with GPIOs. • Up to 23x8 Keyboard Scan Matrix • Two PS/2 Ports - Touch Pad Support - Pointer Stick Support • 40 Multiplexed General Purpose I/O pins - All are MCU addressable I/O Pins • BC-Link Interconnect Bus - Link to embedded controller • SMBus Interconnect - One of two address selection • 3.3V Operation - 48-Pin, QFN RoHS Compliant package - 0.
