HV56264 - Quad High Voltage Amplifier Array

Product Overview

Microchip

📥 Download Datasheet

HV56264 Quad High Voltage Amplifier Array by Microchip - Datasheet Preview — Datasheet preview – HV56264

Datasheet Details

Part number	HV56264
Manufacturer	Microchip
File Size	738.57 KB
Description	Quad High Voltage Amplifier Array
Datasheet	HV56264 Datasheet

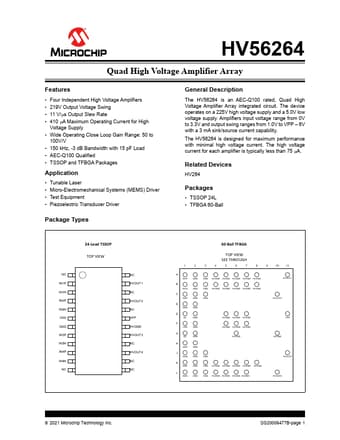

Additional preview pages of the HV56264 datasheet.

Product details

Description

The HV56264 is an AEC-Q100 rated, Quad High Voltage Amplifier Array integrated circuit. 6V with a 3 mA sink/source current capability.

Features

Four Independent High Voltage Amplifiers.
219V Output Voltage Swing.
11 V/s Output Slew Rate.
410 A Maximum Operating Current for High Voltage Supply.
Wide Operating Close Loop Gain Range: 50 to 100V/V.
150 kHz, -3 dB Bandwidth with 15 pF Load.
AEC-Q100 Qualified.
TSSOP and TFBGA Packages.
