KSZ8864CNX - Integrated 4-Port 10/100 Managed Switch

Key Features

  • Advanced Switch Features.
  • IEEE 802.1q VLAN Support for up to 128 VLAN Groups (Full-Range 4096 of VLAN IDs).
  • Static MAC Table Supports up to 32 Entries.
  • VLAN ID Tag/Untagged Options, Per Port Basis.
  • IEEE 802.1p/q Tag Insertion or Removal on a Per Port Basis Based on Ingress Port (Egress).
  • Programmable Rate Limiting at the Ingress and Egress on a Per Port Basis.
  • Jitter-Free Per Packet Based Rate Limiting Support.
  • Broadcast Storm Protec.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KSZ8864RMN Integrated 4-Port 10/100 Managed Switch Micrel Semiconductor
KSZ8862-16MQL 2-Port Ethernet Switch Micrel Semiconductor
KSZ8862-32MQL 2-Port Ethernet Switch Micrel Semiconductor
KSZ8863FLL Integrated 10/100BASE-T/TX/FX 3-Port Switch Micrel Semiconductor
KSZ8863MLL Integrated 10/100BASE-T/TX/FX 3-Port Switch Micrel Semiconductor

Other Datasheets by Microchip Technology

Part Number Description
KSZ8864RMNUB Integrated 4-Port 10/100 Managed Switch
KSZ8862-16M Two-Port Ethernet Switch
KSZ8862-32M Two-Port Ethernet Switch
KSZ8863FLL Integrated 3-Port 10/100 Managed Switch
KSZ8863MLL Integrated 3-Port 10/100 Managed Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

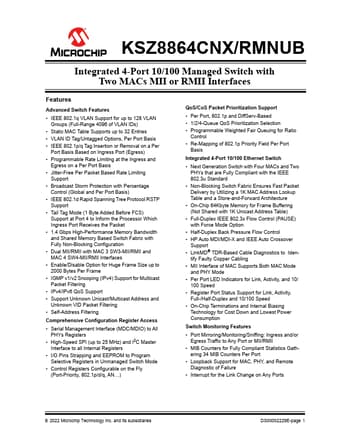

KSZ8864CNX/RMNUB Integrated 4-Port 10/100 Managed Switch with Two MACs MII or RMII Interfaces Features Advanced Switch Features • IEEE 802.1q VLAN Support for up to 128 VLAN Groups (Full-Range 4096 of VLAN IDs) • Static MAC Table Supports up to 32 Entries • VLAN ID Tag/Untagged Options, Per Port Basis • IEEE 802.1p/q Tag Insertion or Removal on a Per Port Basis Based on Ingress Port (Egress) • Programmable Rate Limiting at the Ingress and Egress on a Per Port Basis • Jitter-Free Per Packet Based Rate Limiting Support • Broadcast Storm Protection with Percentage Control (Global and Per Port Basis) • IEEE 802.1d Rapid Spanning Tree Protocol RSTP Support • Tail Tag Mode (1 Byte Added Before FCS) Support at Port 4 to Inform the Processor Which Ingress Port Receives the Packet • 1.
