LAN8810i, LAN8810 - GMII 10/100/1000 Ethernet Transceiver

LAN8810i Description

LAN8810/LAN8810i GMII 10/100/1000 Ethernet Transceiver with HP Auto-MDIX Support Highlights * Single-Chip Ethernet Physical Layer Transceive.
and Configuration 5 3.

LAN8810i Features

* - IEEE 1149.1 (JTAG) boundary scan - Multiple clock options - 25MHz crystal or 25MHz single-ended clock
* Packaging - 72-pin QFN (10x10 mm) RoHS compliant package with GMII
* Environmental - Commercial temperature range (0°C to +70°C) - Industrial temperature range (-40°C to +85°C)

LAN8810i Applications

* Set-Top Boxes
* Networked Printers and Servers
* Test Instrumentation
* LAN on Motherboard
* Embedded Telecom Applications
* Video Record/Playback Systems
* Cable Modems/Routers
* DSL Modems/Routers
* Digital Video Recorders

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LAN8810i, LAN8810. Please refer to the document for exact specifications by model.

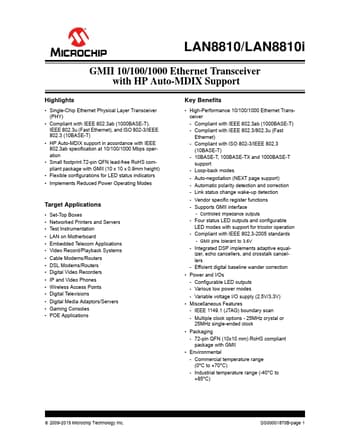

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LAN8810i, LAN8810
Manufacturer
Microchip ↗
File Size
623.04 KB
Datasheet
LAN8810-Microchip.pdf
Description
GMII 10/100/1000 Ethernet Transceiver
Note
This datasheet PDF includes multiple part numbers: LAN8810i, LAN8810.
Please refer to the document for exact specifications by model.
