LAN89530 - USB 2.0 to 10/100 Ethernet Controller

Name: LAN89530
SKU: LAN89530-1093364

Microchip

The LAN89530 by Microchip is a USB 2.0 to 10/100 Ethernet Controller. Below is the official datasheet preview.

Datasheet Details

Part number	LAN89530
Manufacturer	Microchip
File Size	1.88 MB
Description	USB 2.0 to 10/100 Ethernet Controller
Datasheet	LAN89530-Microchip.pdf

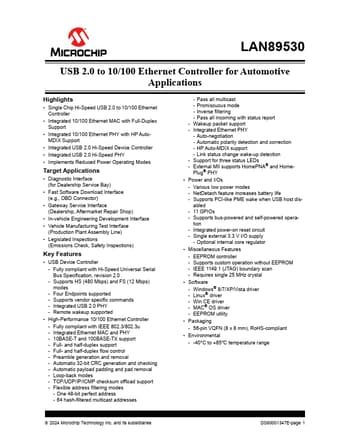

Additional preview pages of the LAN89530 datasheet.

and Configuration 10 3.0 Power Connections ..

USB Device Controller - Fully compliant with Hi-Speed Universal Serial Bus Specification, revision 2.0 - Supports HS (480 Mbps) and FS (12 Mbps) modes - Four Endpoints supported - Supports vendor specific commands - Integrated USB 2.0 PHY - Remote wakeup supported.
High-Performance 10/100 Ethernet Controller - Fully compliant with IEEE 802.3/802.3u - Integrated Ethernet MAC and PHY - 10BASE-T and 100BASE-TX support - Full- and half-duplex support - Full- and half-duplex flow c.
