M911201 - MEMS Oscillator

M911201 Description

M9112X1 2.5-170 MHz High Performance MEMS Oscillator .
The descriptions of the pins are listed in Table 1-1.

M911201 Features

* Any Frequency Between 2.5 MHz and 170 MHz Accurate to 6 Decimal Places
* CMOS-Compatible Output
* Very Low Phase Jitter: 0.65 ps (12 kHz to 20 MHz)
* Wide Temperature Range:
* 40°C to + 125°C
* Standard 6-Lead Packages: 7.0 mm × 5.0 mm, 5.0 mm × 3.2 m

M911201 Applications

* Computing, Storage, Networking, Telecom, Industrial Control
* SATA, SAS, Ethernet, PCI Express, Video, Wi-Fi
* Military Systems PERFORMANCE SPECIFICATIONS Parameter Symbol Min. Typ. Output Frequency fOUT 2.5
* 20
* Frequency Stability fST

📥 Download Datasheet

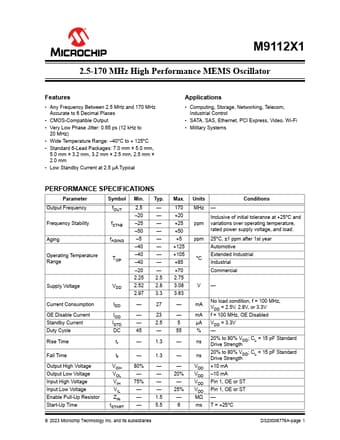

Preview of M911201 PDF
