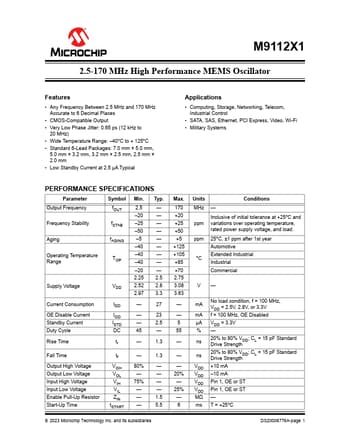

M911221 MEMS Oscillator

The descriptions of the pins are listed in Table 1-1. M9112x1 6-Lead VDFN (Top View) M9112X1 TABLE 1-1: PIN FUNCTION TABLE Pin Number Pin Name Description 1 OE or STBY Input. H or Open: Specified frequency output. L: Output is high impedance. 2 NC NA. Do not connect; leave it floating. 3 .

M911221 Features

* Any Frequency Between 2.5 MHz and 170 MHz Accurate to 6 Decimal Places

* CMOS-Compatible Output

* Very Low Phase Jitter: 0.65 ps (12 kHz to 20 MHz)

* Wide Temperature Range:

* 40°C to + 125°C

* Standard 6-Lead Packages: 7.0 mm × 5.0 mm, 5.0 mm × 3.2 m
