MCP2003B - LIN Transceiver

Description

This device provides a bidirectional, half-duplex communication, physical interface to automotive and industrial LIN systems to meet the LIN Bus Specification Revision 2.2, SAE J2602, and ISO 17987.

The device is both short-circuit and overtemperature protected by internal circuitry.

Features

  • The MCP2003B is Compliant with Local Interconnect Network (LIN) Bus Specifications 1.3, 2.0, 2.1, 2.2, SAE J2602, and ISO17987.
  • Supports Baud Rates up to 20 Kbaudwith LIN-Compatible Output Driver.
  • 60V Load Dump Protected.
  • Very High Electromagnetic Immunity (EMI) Meets Stringent Original Equipment Manufacturers (OEM) Requirements.
  • Direct Capacitor Coupling Robustness without Transient Voltage Suppressor (TVS): - ±35V on LBUS (SAE J2962-1) - ±85V on L.

📥 Download Datasheet

📁 Similar Datasheet

  • MCP2003 - LIN J2602 Transceiver (Microchip Technology)
  • MCP2004 - LIN J2602 Transceiver (Microchip Technology)
  • MCP201 - LIN Transceiver (Microchip Technology)
  • MCP2021 - LIN Transceiver (Microchip Technology)
  • MCP2022 - LIN Transceiver (Microchip Technology)
  • MCP2025 - LIN Transceiver (Microchip Technology)
  • MCP2030 - Three-Channel Analog Front-End Device (Microchip Technology)
  • MCP2036 - Inductive Sensor Analog Front End Device (Microchip Technology)
  • MCP20N06 - N-Channel 60-V (D-S) MOSFET (Freescale)
  • MCP2122 - Infrared Encoder/Decoder (Microchip Technology)
Other Datasheets by Microchip

Full PDF Text Transcription

Click to expand full text

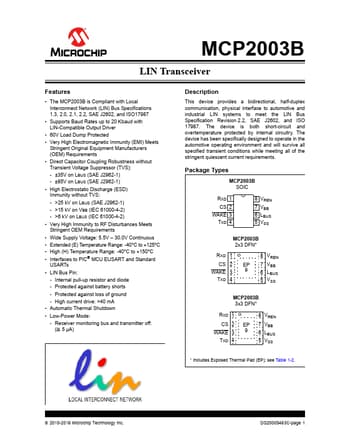

MCP2003B LIN Transceiver Features • The MCP2003B is Compliant with Local Interconnect Network (LIN) Bus Specifications 1.3, 2.0, 2.1, 2.2, SAE J2602, and ISO17987 • Supports Baud Rates up to 20 Kbaudwith LIN-Compatible Output Driver • 60V Load Dump Protected • Very High Electromagnetic Immunity (EMI) Meets Stringent Original Equipment Manufacturers (OEM) Requirements • Direct Capacitor Coupling Robustness without Transient Voltage Suppressor (TVS): - ±35V on LBUS (SAE J2962-1) - ±85V on LBUS (SAE J2962-1) • High Electrostatic Discharge (ESD) Immunity without TVS: - >25 kV on LBUS (SAE J2962-1) - >15 kV on VBB (IEC 61000-4-2) - >6 kV on LBUS (IEC 61000-4-2) • Very High Immunity to RF Disturbances Meets Stringent OEM Requirements • Wide Supply Voltage: 5.5V – 30.
