MCP6V34, MCP6V31 300kHz Zero-Drift Op Amps

Microchip

Description

MCP6V31/1U/2/4 23 µA, 300 kHz Zero-Drift Op Amps .
The Microchip Technology Inc.

📥 Download Datasheet

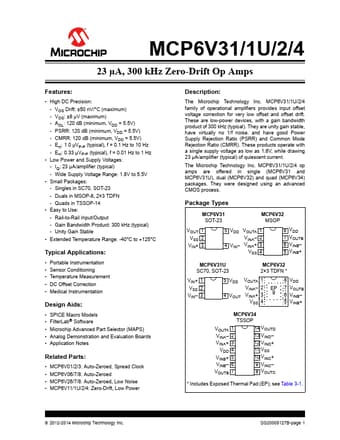

MCP6V34 Datasheet Preview — This datasheet PDF includes multiple part numbers: MCP6V34, MCP6V31. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MCP6V34, MCP6V31
Manufacturer: Microchip ↗
File Size: 4.43 MB
Datasheet: MCP6V31-Microchip.pdf
Description: 300kHz Zero-Drift Op Amps
Note: This datasheet PDF includes multiple part numbers: MCP6V34, MCP6V31.
Please refer to the document for exact specifications by model.

Features

* High DC Precision: - VOS Drift: ±50 nV/°C (maximum) - VOS: ±8 µV (maximum) - AOL: 120 dB (minimum, VDD = 5.5V) - PSRR: 120 dB (minimum, VDD = 5.5V) - CMRR: 120 dB (minimum, VDD = 5.5V) - Eni: 1.0 µVP-P (typical), f = 0.1 Hz to 10 Hz - Eni: 0.33 µVP-P (typical), f = 0.01 Hz to 1 Hz

Applications

* Portable Instrumentation
* Sensor Conditioning
* Temperature Measurement
* DC Offset Correction
* Medical Instrumentation Design Aids:
* SPICE Macro Models
* FilterLab® Software
* Microchip Advanced Part Selector (MAPS)
* Ana
