Description
The MIC20XX family of switches are current limiting, high-side power switches, designed for general purpose power distribution and control in digital televisions (DTV), printers, set top boxes (STB), PCs, PDAs, and other peripheral devices (see MIC20XX Family Package Types and the MIC20XX Family Member Functionality table).
Features
- MIC20X3 - MIC20X9 - 70 mΩ Typical On-Resistance @ 5V
MIC2005A/20X9A - 170 mΩ Typical On-Resistance @ 5V.
- Enable Active-High or Active-Low.
- 2.5V to 5.5V Operating Range.
- Pre-Set Current Limit Values of 0.5A, 0.8A, and
1.2A.
- Adjustable Current Limit 0.2A to 2.0A.
- (MIC20X7-MIC20X9).
- Adjustable Current Limit 0.1A to 0.9A.
- (MIC20X9A).
- Undervoltage Lockout (UVLO).
- Variable UVLO Allows Adjustable UVLO
Thresholds.

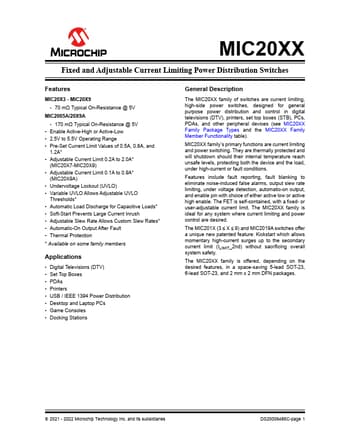

MIC2018 Datasheet
