MMA155PP5 - DC-22GHz 32dBm Distributed Power Amplifier

MMA155PP5 DC 22 GHz 32dBm Distributed Power Amplifier Product Overview MMA155PP5 is a gallium arsenide (GaAs) monolithic microwaveintegrated circuit (MMIC) pseudomorphic highelectron - mobility tra nsistor (pHEMT) distributed a mplifier tha t opera tes between DC a nd 22 GHz.

It is idea l for test instrumentation and wide-band military and space applications.

The amplifier provides a gain of 15 dB, 3.5 dB noise figure, a nd 32 dBm of output power a t 3 dB ga in compression with a nomi

MMA155PP5 Features

* RF I/Os that are internally matched to 50 Ω. Key Features

* Broadband performance: DC to 22 GHz

* High Gain: 15 dB

* Positive Gain Slope

* High Psat: 33 dBm at 12 GHz

* Supply: 13 V at 640 mA

* Integrated Temperature Compensated Power Detector

MMA155PP5-Microchip.pdf

Preview of MMA155PP5 PDF

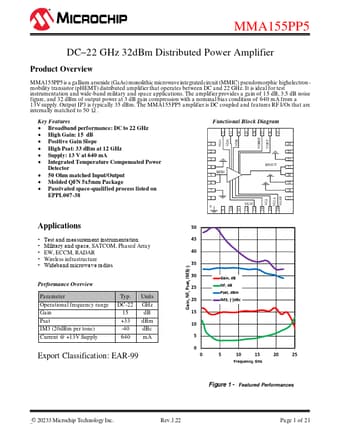

MMA155PP5 Datasheet Preview Page 2 MMA155PP5 Datasheet Preview Page 3
