MTS2916A

Dual Full-Bridge Motor Driver

MTS2916A Features

* 750 mA Continuous Output Current

* Load Voltage Supply: 10V to 40V

* Full Bipolar Stepper Motor Drive Capability

* Bidirectional DC Motor Capability

* Internal Fixed TOFF Time PWM Current Control

* Internal Protection Diodes

* Internal Therma

MTS2916A General Description

The MTS2916A motor driver is a CMOS device capable of driving both windings of a bipolar stepper motor or bidirectionally control two DC motors. Each of the two independent H-bridge outputs is capable of sustaining 40V and delivering up to 750 mA of.

MTS2916A Datasheet (238.20 KB)

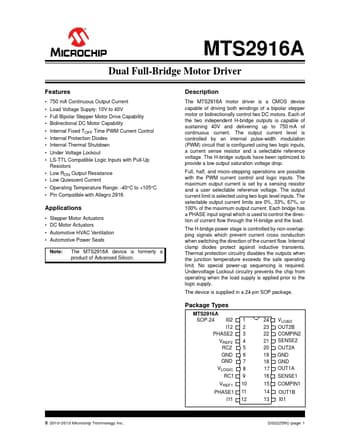

Preview of MTS2916A PDF

Datasheet Details

Part number:

MTS2916A

Manufacturer:

Microchip ↗

File Size:

238.20 KB

Description:

Dual full-bridge motor driver.
