PAC1931 - Single/Multi-Channel DC Power/Energy Monitor

This page provides the datasheet information for the PAC1931, a member of the PAC1932 Single/Multi-Channel DC Power/Energy Monitor family.

Datasheet Summary

Description

The PAC1931/2/3/4 are one, two, three and four-channel power and energy monitoring devices.

A high-voltage multiplexer sequentially connects the inputs to a bus voltage monitor and current sense amplifier that feed high-resolution ADCs.

Features

High-Side Current Monitor with One, Two, Three or Four Channels - 100 mV full-scale range for current sense voltage,16-bit resolution - Selectable bidirectional current sense capability, -100 mV to +100 mV range, 16-bit two’s complement (signed) data format - External sense resistor sets full scale current range - Very low input current simplifies routing.
Wide Bus Voltage Range for Voltage Monitor - 0V to 32V input common-mode voltage - 16-bit resolution for voltage measureme.

Datasheet Details

Part number	PAC1931
Manufacturer	Microchip
File Size	1.14 MB
Description	Single/Multi-Channel DC Power/Energy Monitor
Datasheet	PAC1931 Datasheet

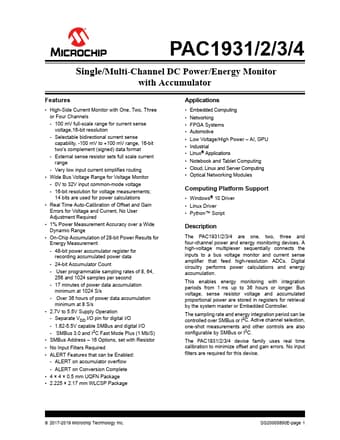

Additional preview pages of the PAC1931 datasheet.

📁 Similar Datasheet

PAC1000 - User Congifurable Embedded Controller (Waferscale Integration)

PAC1000-xx - User Congifurable Embedded Controller (Waferscale Integration)

PAC100QR - P/ACTIVE EMI/RFI T FILTER (California Micro Devices Corp)

PAC100QT - P/ACTIVE EMI/RFI T FILTER (California Micro Devices Corp)

PAC100TFQR - P/ACTIVE EMI/RFITAPPED FILTER (California Micro Devices Corp)

PAC100TFQT - P/ACTIVE EMI/RFITAPPED FILTER (California Micro Devices Corp)

PAC101AQR - P/ACTIVE AC TERMINATION NETWORK (California Micro Devices Corp)

PAC101AQT - P/ACTIVE AC TERMINATION NETWORK (California Micro Devices Corp)

PAC101QR - P/ACTIVE EMI/RFI T FILTER (California Micro Devices Corp)

PAC101QT - P/ACTIVE EMI/RFI T FILTER (California Micro Devices Corp)

Full PDF Text Transcription

Click to expand full text

PAC1931/2/3/4 Single/Multi-Channel DC Power/Energy Monitor with Accumulator Features • High-Side Current Monitor with One, Two, Three or Four Channels - 100 mV full-scale range for current sense voltage,16-bit resolution - Selectable bidirectional current sense capability, -100 mV to +100 mV range, 16-bit two’s complement (signed) data format - External sense resistor sets full scale current range - Very low input current simplifies routing • Wide Bus Voltage Range for Voltage Monitor - 0V to 32V input common-mode voltage - 16-bit resolution for voltage measurements; 14 bits are used for power calculations • Real Time Auto-Calibration of Offset and Gain Errors for Voltage and Current, No User Adjustment Required • 1% Power Measurement Accuracy over a Wide Dynamic Range • On-Chip Accumula
