PIC10F204 8-Bit Flash Microcontrollers

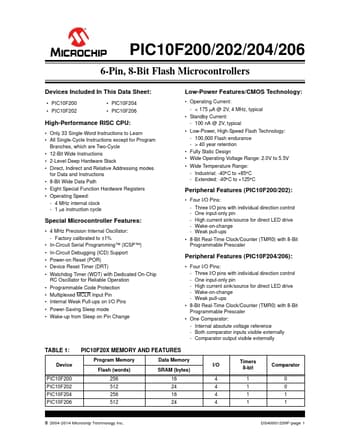

PIC10F200/202/204/206 6-Pin, 8-Bit Flash Microcontrollers Devices Included In This Data Sheet: PIC10F200 PIC10F202 PIC10F204 PIC10F206 High-Performance RISC CPU: Only 33 Single-Word Instructions to Learn All Single-Cycle Instructions except for Program Branches, which are Two-Cycle 12-Bit Wide Instructions 2-Level Deep Hardware Stack Direct, Indirect and Relative Addressing modes for Data and Instructio.

PIC10F204 Features

* 4 MHz Precision Internal Oscillator: - Factory calibrated to ±1%

* In-Circuit Serial Programming™ (ICSP™)

* In-Circuit Debugging (ICD) Support

* Power-on Reset (POR)

* Device Reset Timer (DRT)

* Watchdog Timer (WDT) with Dedicated On-Chip RC Oscilla

PIC10F204 Datasheet (866.15 KB)
