PIC10F206, PIC10F200 Datasheet - Microchip

PIC10F206 8-Bit Flash Microcontrollers

PIC10F200/202/204/206 6-Pin, 8-Bit Flash Microcontrollers Devices Included In This Data Sheet: PIC10F200 PIC10F202 PIC10F204 PIC10F206 High-Performance RISC CPU: Only 33 Single-Word Instructions to Learn All Single-Cycle Instructions except for Program Branches, which are Two-Cycle 12-Bit Wide Instructions 2-Level Deep Hardware Stack Direct, Indirect and Relative Addressing modes for Data and Instructio.

PIC10F206 Features

* 4 MHz Precision Internal Oscillator: - Factory calibrated to ±1%

* In-Circuit Serial Programming™ (ICSP™)

* In-Circuit Debugging (ICD) Support

* Power-on Reset (POR)

* Device Reset Timer (DRT)

* Watchdog Timer (WDT) with Dedicated On-Chip RC Oscilla

PIC10F200-Microchip.pdf

This datasheet PDF includes multiple part numbers: PIC10F206, PIC10F200. Please refer to the document for exact specifications by model.

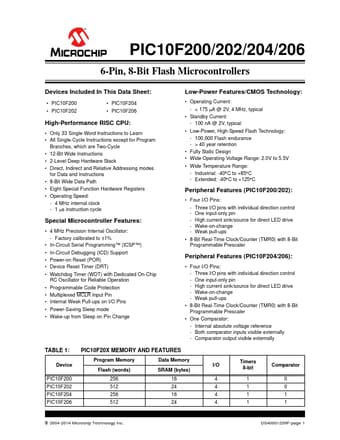

PIC10F206 Datasheet Preview Page 2 PIC10F206 Datasheet Preview Page 3

Datasheet Details

Part number:

PIC10F206, PIC10F200

Manufacturer:

Microchip ↗

File Size:

866.15 KB

Description:

8-bit flash microcontrollers.

Note:

This datasheet PDF includes multiple part numbers: PIC10F206, PIC10F200.
Please refer to the document for exact specifications by model.
